MINITECH 2X professional endoscope for video inspections
Practical mini professional endoscope for video inspections
- Convenient and portable
- Compact and lightweight
- Easy to use
- 15 Languages (including Italian, English, German, French ..)
The MINITECH 2X Professional Video Inspection Endoscope is the equipment for technicians’ interventions and for the digital documentation of the most difficult pipe work to be carried out.
Very easy to use, compact, portable and very light.

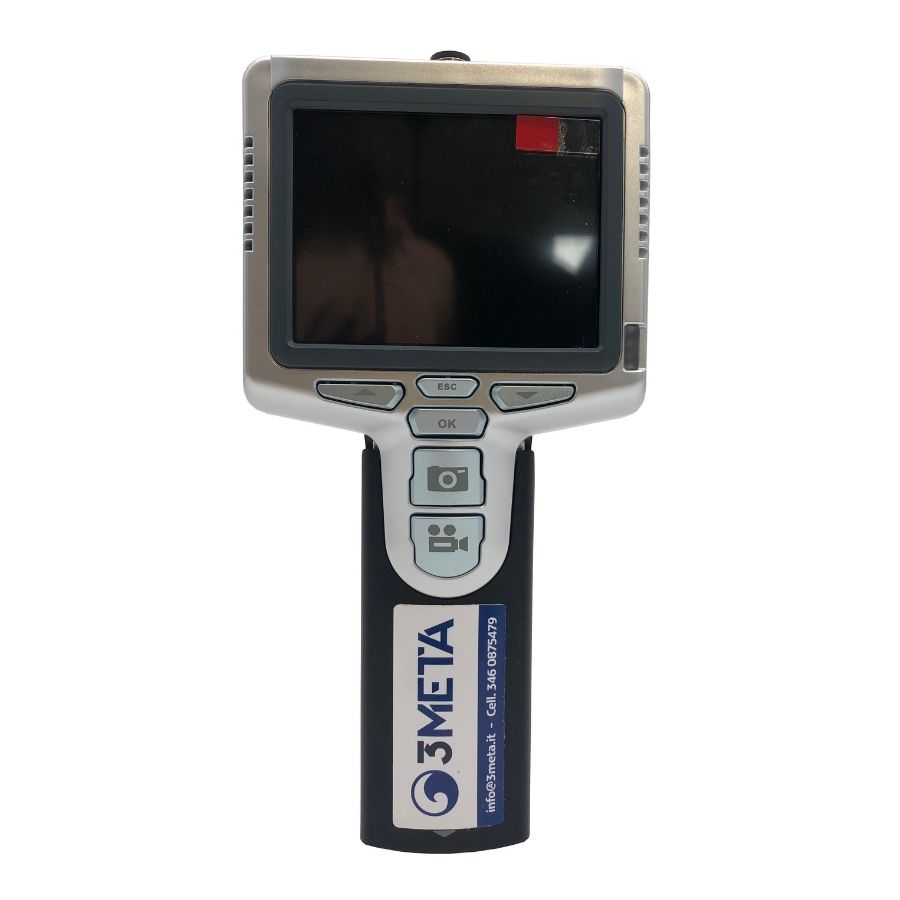

At the top right of the screen you can see the remaining battery level.

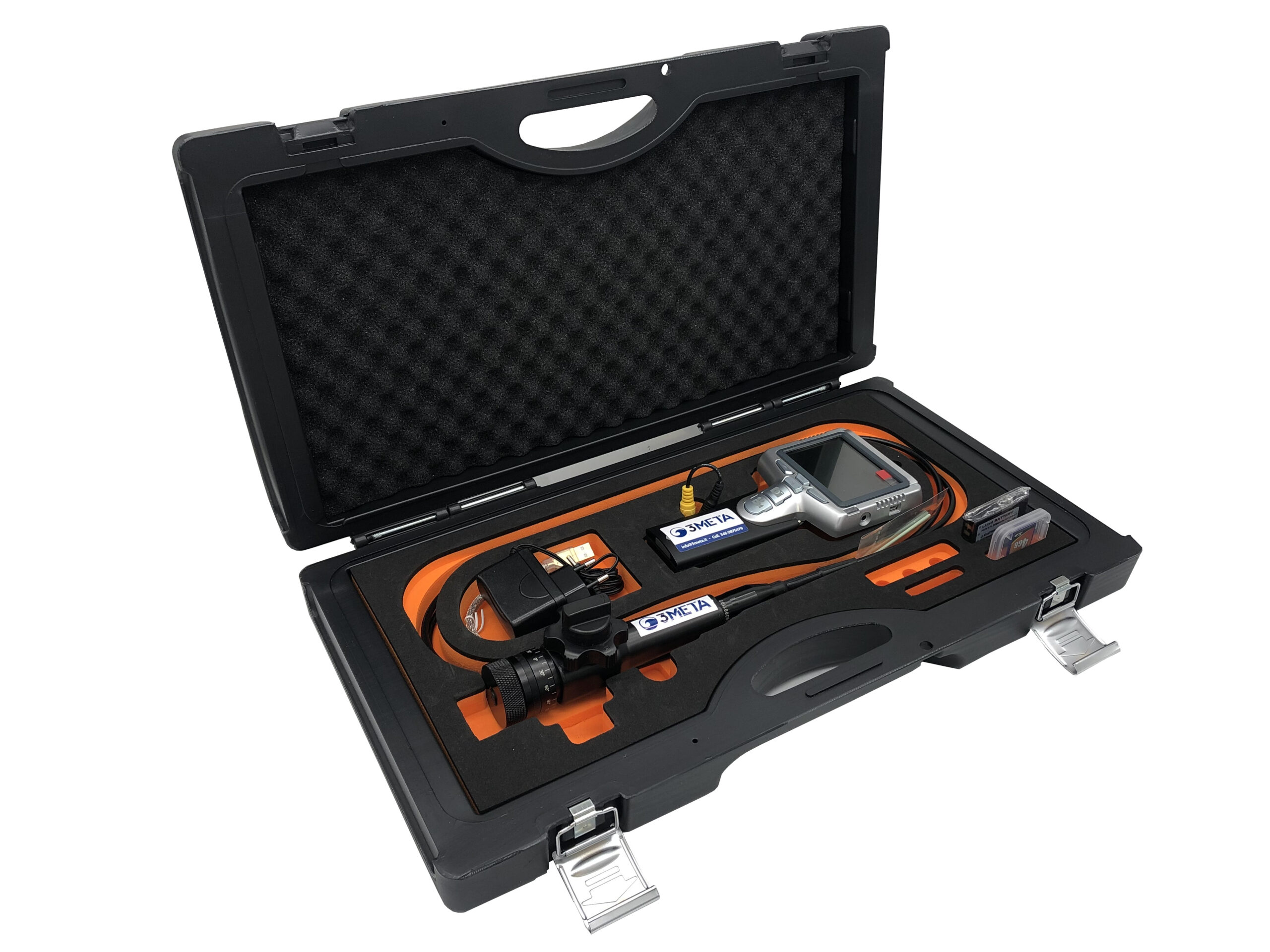

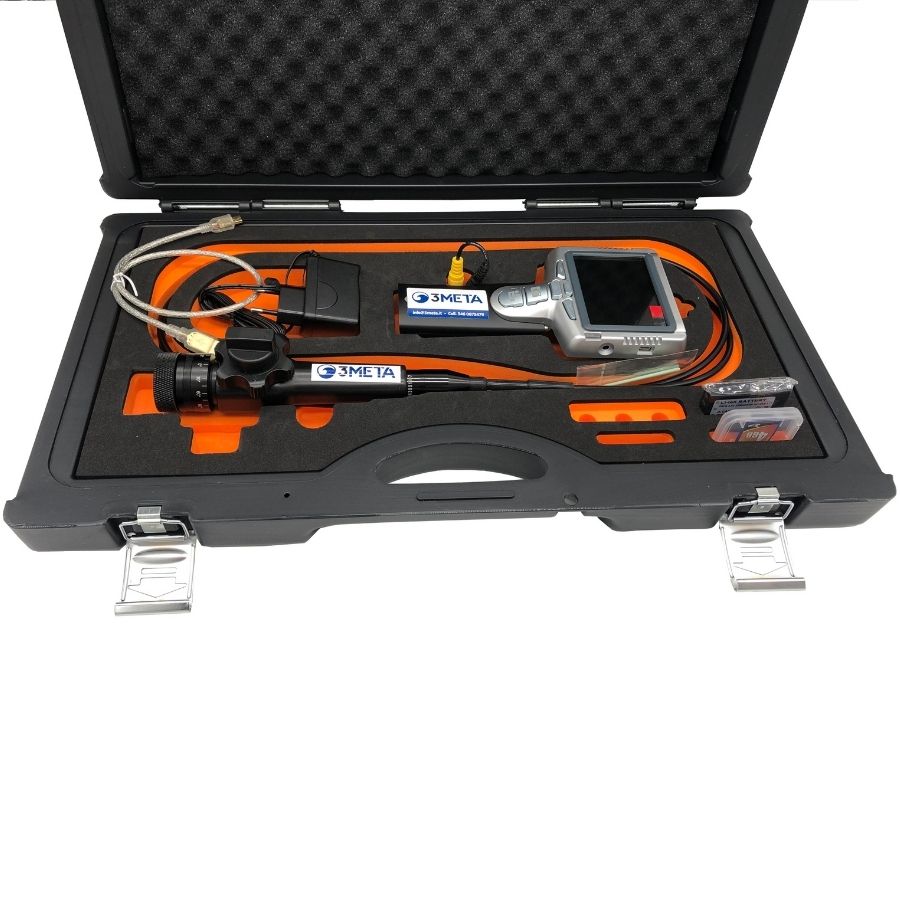

Practical kit included:

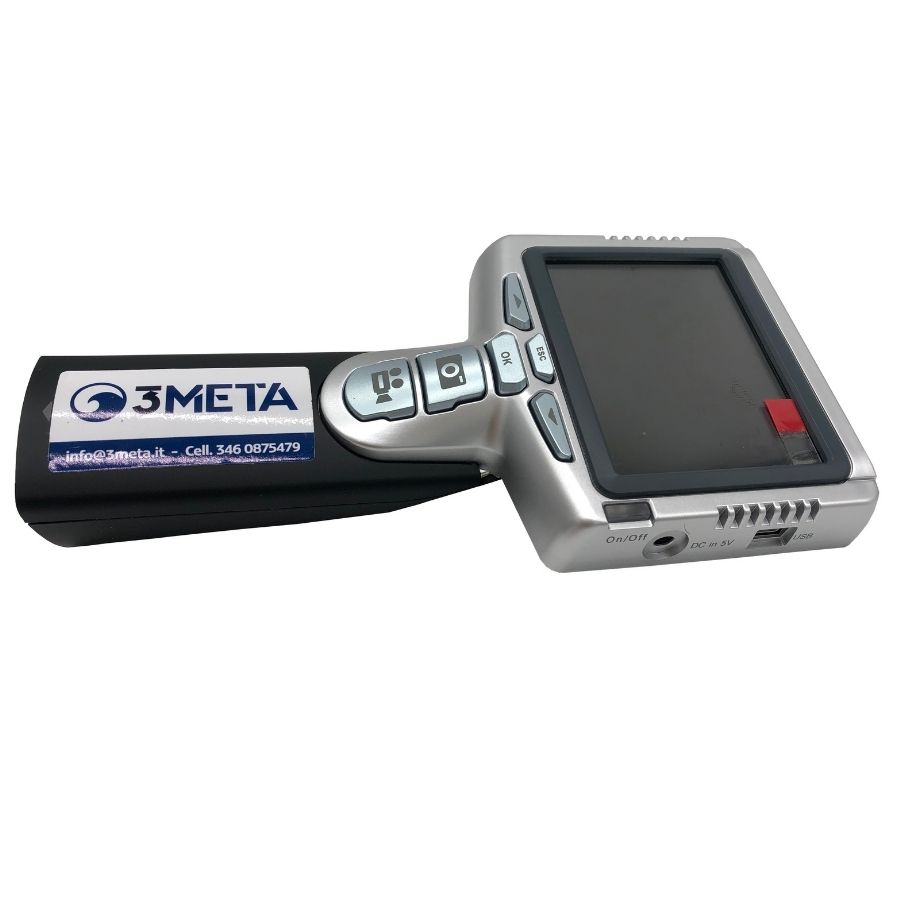

- Main unit with screen
- arm with rotary knob and cable with camera
- SD card
- Lithium battery
- Double USB Cable
- Equipment case for video inspection and digital documentation.
| Pixel Camera | 720 x 480 (NTSC) / 720 X 576 (PAL) |
|---|---|
| Display | 3.5" TFL-LCD |
| Interface | Mini USB 1.1 /AV out |
| Battery Power | Lithium rechargeable battery 3.7V / 2350 mAh |
| Video format | NTSC & PAL |
| Recording capacity | 4GB SD Card (supporta 32GB SDHC) |
| Photo storage | JPEG (640 X 480) |
| Video storage | AVI (640 x 480) |
| Zoom | Zoom x2 |
| Contents | Foto e Video di navigazione |
| Languages | 15 Lingue |
| Lens diameter | 5.5 mm |
| Cable Lenght | 1 meter |
| Resolution | 640(H) x 480 (V) |
| Depth of field | close to focus 2-5 cm / away from focus 8 cm in poi |
| Neck of the cable | 135 ° on both sides (left and right) |
| Exposure | Automatic |
| Field of view | 60° |
| Operation temperature | -10-60° |
| Waterproof | IP67 |
| Light source | 4 White Led |
Applications
Multiple applications, from security checks to legal proofs, pipe cleaning and remediation, application for electronics industry, aviation, marine, machinery.
For video inspections of pipes.
Professional equipment for digital documentation of technical interventions.
Useful for video inspections of pipes and sewers.
Use
Connect the probe to the main unit and insert the SD Card to save the File.
Press and hold the power button for 3-5 seconds, turn it on and start using it.
Press the camera icon to take the photo during the video inspection.
To start filming, however, press the video camera icon.
Use the adjustment knob to move the endoscopic probe while video-inspecting the tubing.
It is highly recommended not to use your hands to adjust it.
Do not rotate while the cable is fully coiled.
With the rotating head of the professional endoscope it is possible to zoom in on the point of interest.
