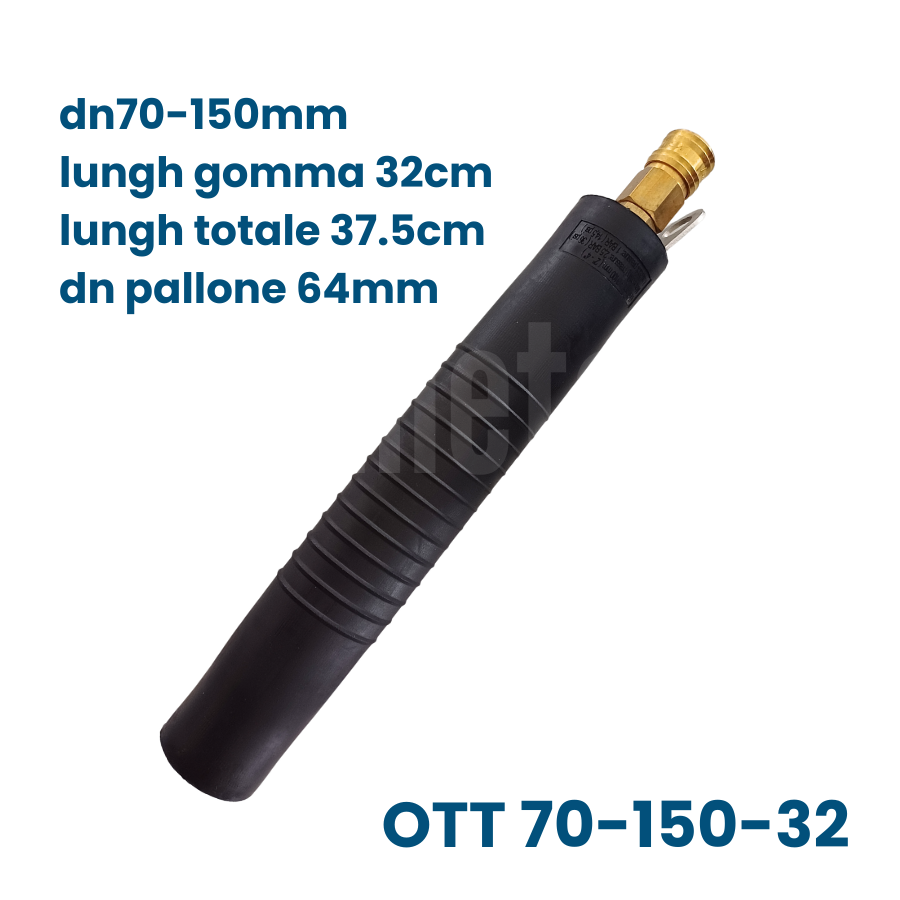

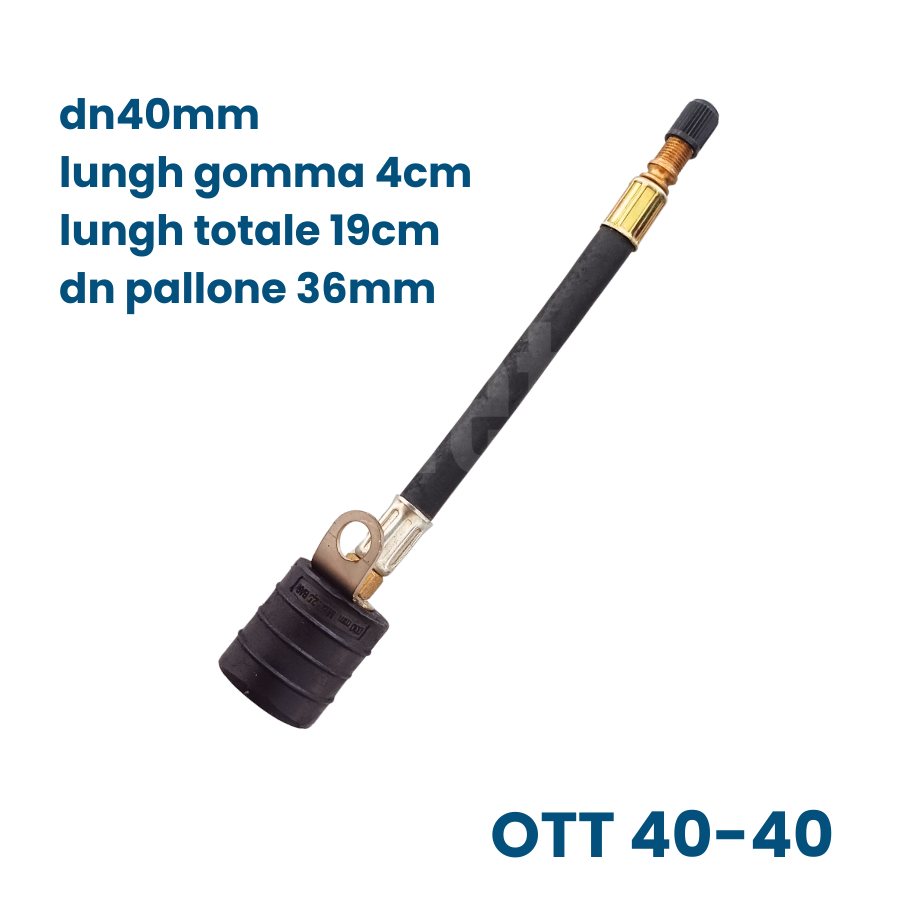

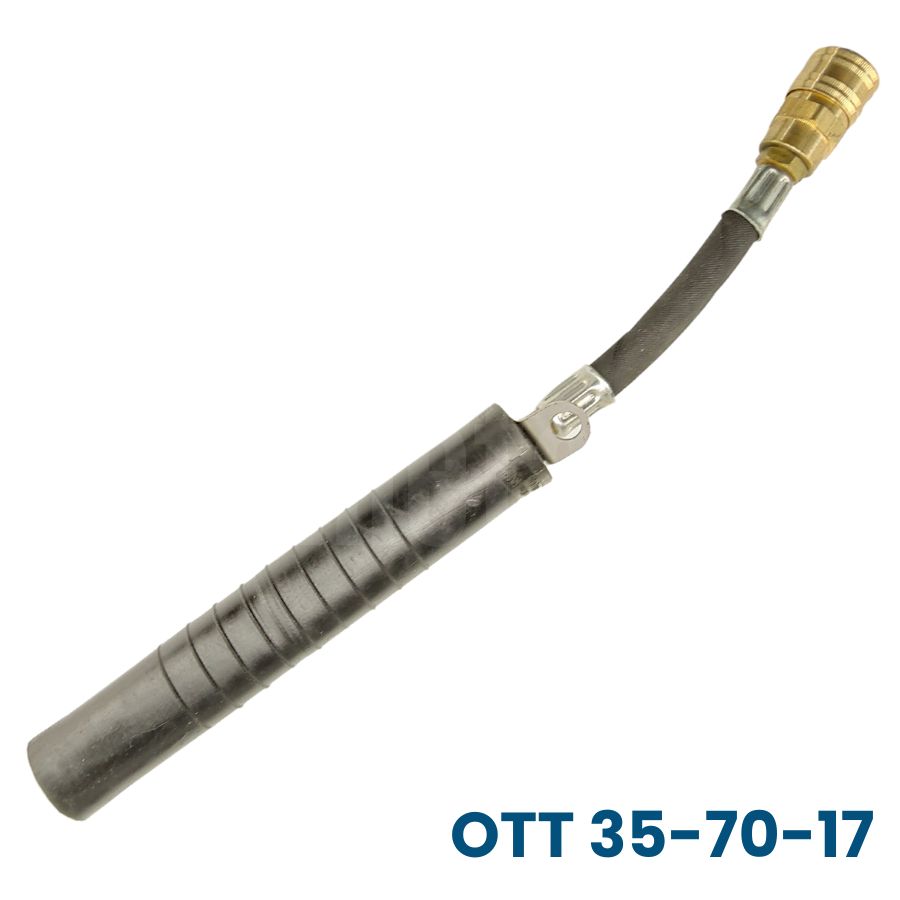

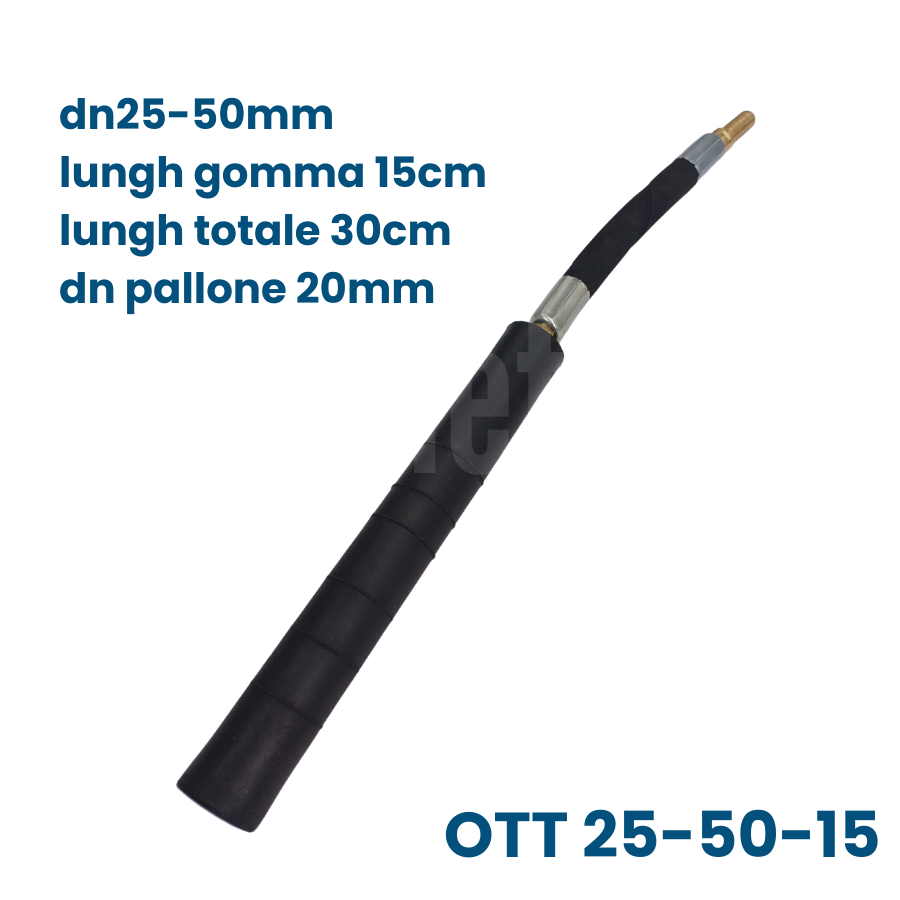

Plugy for drains from dn 20 to dn 305 mm for the temporary interruption of the flow
The drain plugy is used for short pipes such as domestic drains or hookups. They are ideal for temporarily interrupting gravity sewers with a circular section with a diameter between 20 mm and 305 mm.
It can also be used to carry out leak tests on pipes

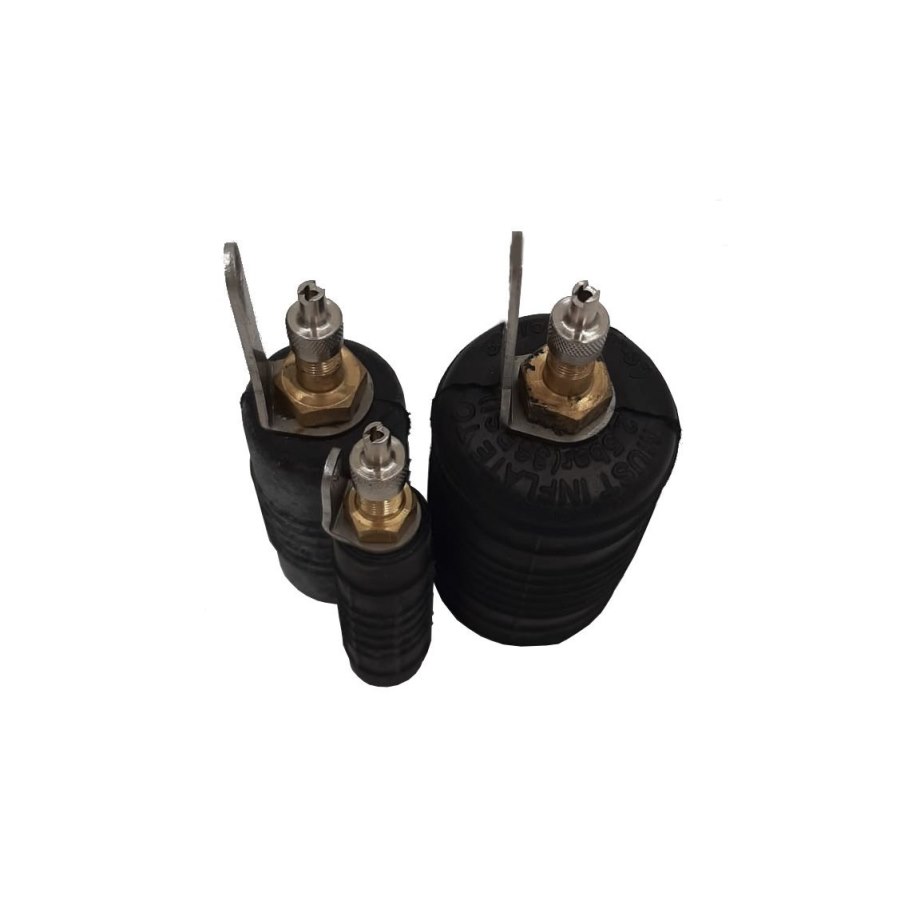

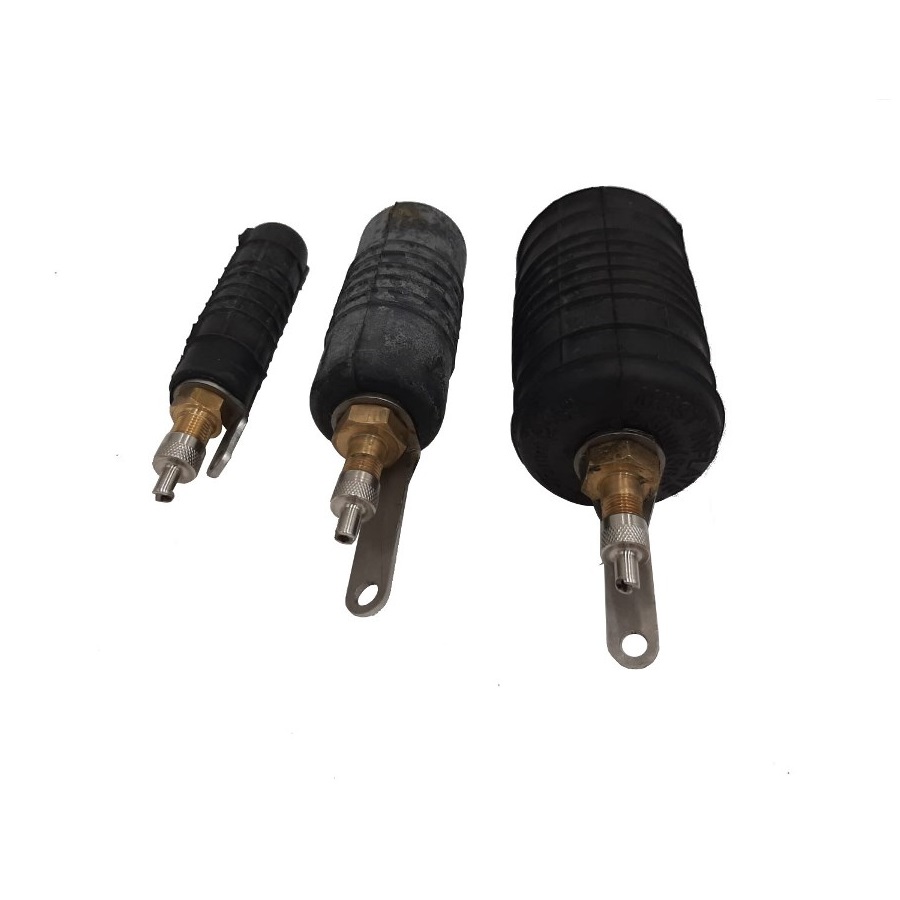

Each plugy is equipped with a quick coupling for connecting the inflation tube and rings to facilitate anchoring.
| Material | Made of SBR + NR mixed rubber and resistant fabrics |
|---|---|
| Homologation tests | Tested at a pressure of 1.3 times higher than that of use before being approved |
| Working temperature | From -30°C to 70°C |
For domestic drains or connections
For testing domestic drains or connections
For hydraulic or air tests
Insertion of the plugy in the tube, connection of the inflation tube and air loading by means of a pressure gauge.
Plugy anchoring.
