Rz Machine

Are you looking for a solution for cleaning the exhaust pipes?
The new RZ mechanical flushing machine allows flushing of drains in the home and condominium

Mechanical flushing machine for flushing drains with a diameter between 50 mm and 100 mm
Excellent for the unblocking of roots in pipes, removing limestone in pipes, unclogging of drains from rust and encrustations
Also ideal for reopening laces after relining, removing badly made socks or packers.

The system works in two different solutions:

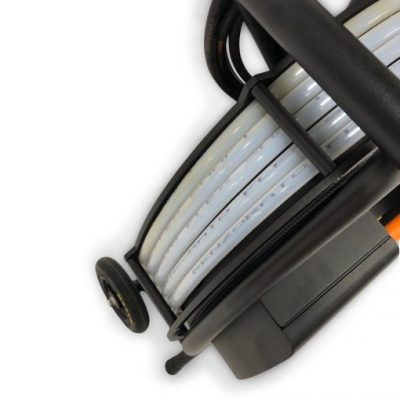

  • Together with the drum thanks to the 10 m working cable (8mm / 10mm / 12mm)
  • Autonomous with 20m working cables (8mm / 10mm / 12mm)

ALL-AROUND – ONE SOLUTION: TWO NEEDS

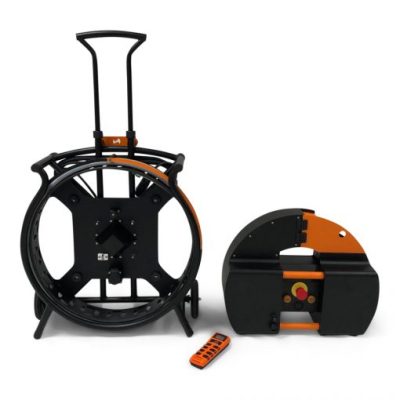

The only system that allows you to separate the machine from the drum to have two different needs in a single solution

SIMPLE and DESIGNED FOR ONE PERSON

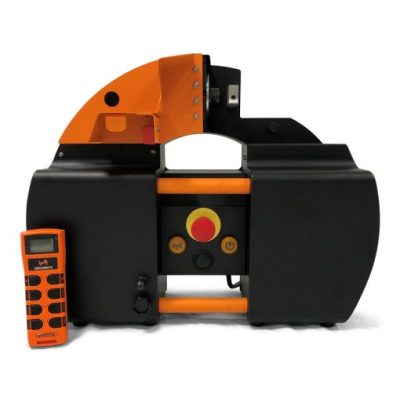

The only machine designed to work in complete autonomy: you can also use it alone thanks to the radio remote control. Excellent coverage even in the presence of concrete walls

LIGHT and COMPACT
The ability to separate the engine from the frame makes it extremely easy to handle

SILENT
The system works with an electric motor

SAFE
The mechanical cleaning machine RZ works without water therefore there is no risk of flooding the apartments.

SMART
Unlike other cutters, RZ is a safe system because it locks in 1.5 seconds.

RELIABLE
Made to run for a long time with minimal maintenance.
Compliant with regulations: 2006/42 / EC, Machinery Directive 2006/95 / EC, Low Voltage Directive 2004/108 / EC, EMC Directive

ERGONOMIC
The RZ machine has an extremely low weight compared to other solutions on the market.
Easy to transport directly on site

Voltage input 230 V ± 10 % / 10A
Cable length 10 mt, 20 mt
Cable diameter 8mm, 10mm, 12mm
Speed Max 3000 RPM
Size
Weight The unit weighs 35 kg (separate position about 17 kg)
Noise 1 mt 70 dB @ 1500 RPM

Applications

Root milling in pipes
Flushing of the drains
Limescale removal in pipes
Re-opening laces after relining
Badly performed sock or packer removal

Use

The most suitable rotary cutter will be applied to the end of the cable according to the type of milling to be performed.
The cable is pushed manually by the operator.
Operated by remote control.
The implant rotates the drill at an adjustable speed
