Flexible liner for relining rehabilitation of gravity sewers, horizontal and vertical pipes with bends from 0 to 90°
High resistance to chemical and mechanical stress, excellent hydraulic properties and high flexibility in processing

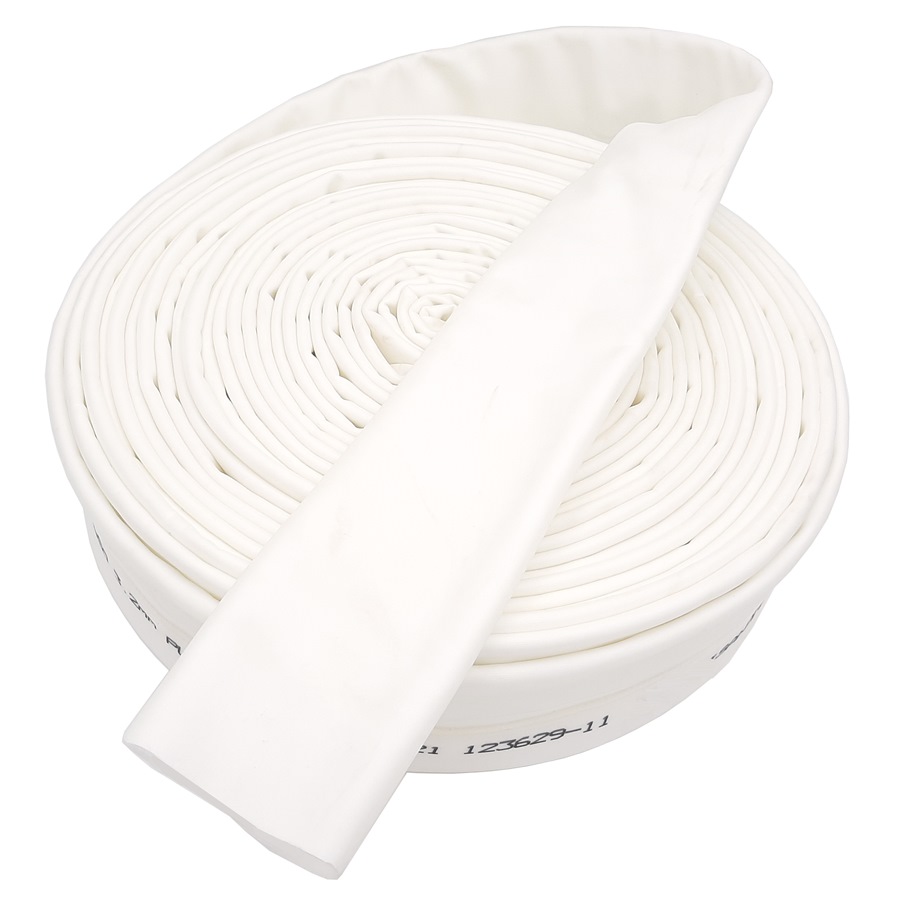

Flexy liner
COD:fef9d8af3e46
Type of Liner for Relining
| Diameter | From 50 mm to 200 mm |
|---|---|
| Sub-size | -9% -18% |
| Thickness | 3,2 mm |
| Final Thikness | 3,5 - 4,0 mm |
| Flexibility | 50 - 60% |
| Liner Type | PES |
| Type of coating | PU250 |
| Tolerance | ±0,2 mm |

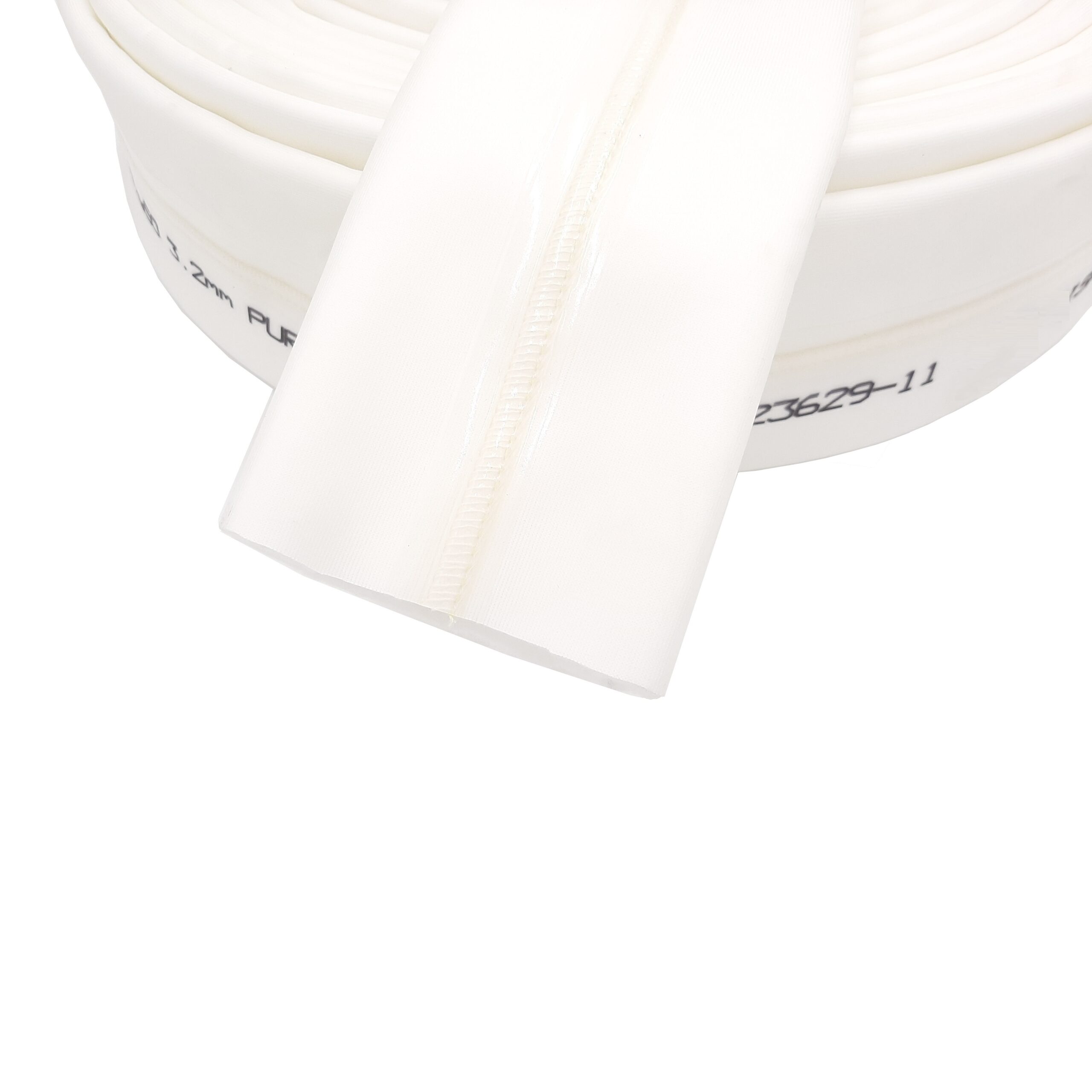

| Manufacturing method | Sewn and Sealed |
| Work pressure | 0,6 - 1,1 bar |
| NOT compatible resin | Silicate |
Applications
Rehabilitation Relining
Use
Room temperature polymerization
Controlled temperature polymerization
Water polymerization
